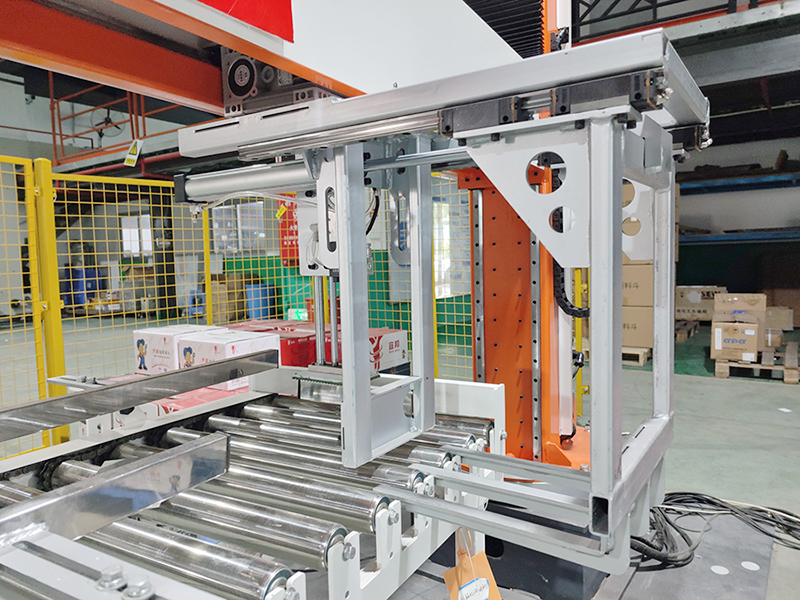

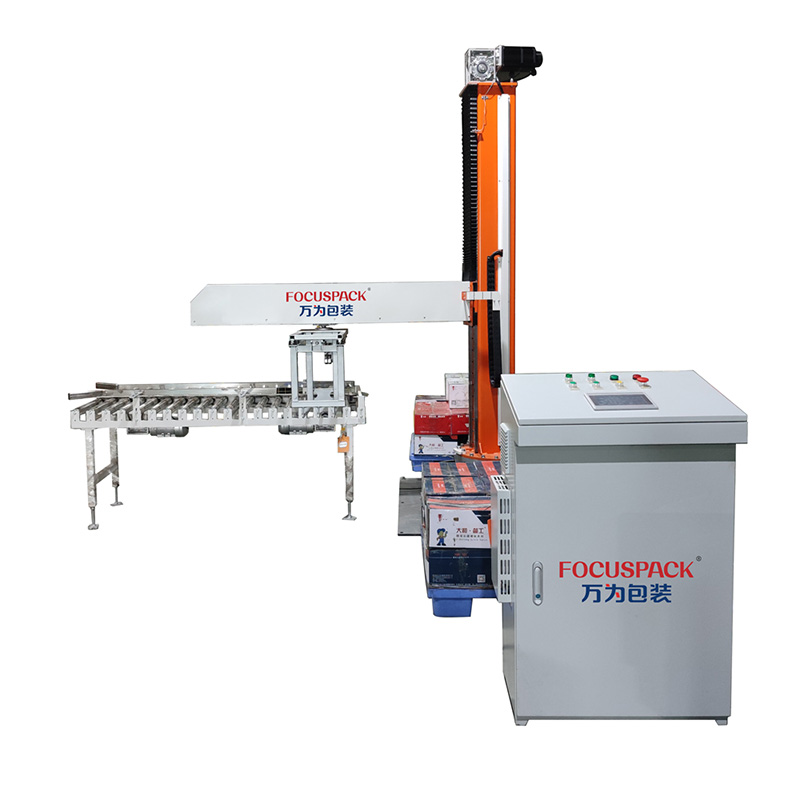

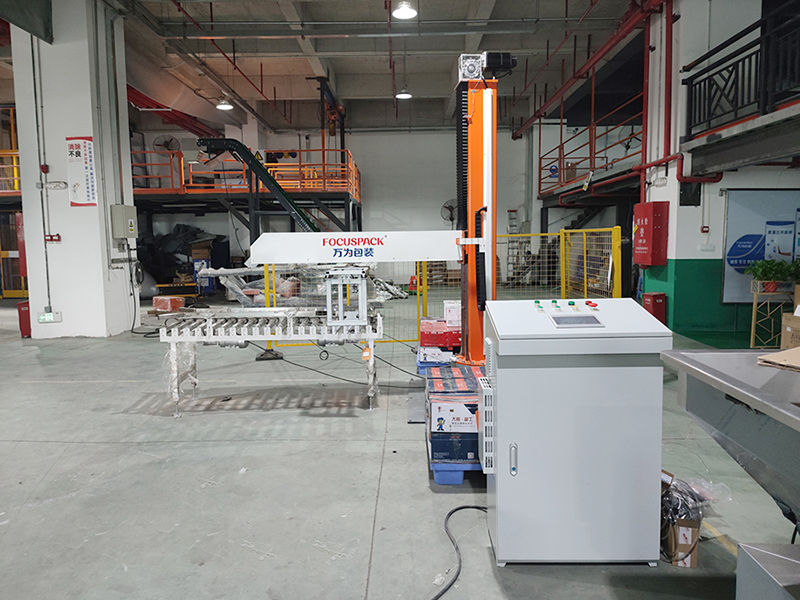

Column Type Palletizer Machine

This type palletize is suitable for cartons and bags of different sizes. It can pick up 1 or 2 bags at one time. Save place and increase efficiency.

Technical Parameters:

Model Column Type Palletizer Machine
Machine Size 1400*1400*3000 mm
Pallet size ≦1400*1600 mm
Packing Speed 4-10carton/bag per minute (Depends on materials condition)
Weight range 10-50kg/carton/bag
Palletizing height ≦1600mm
Arm activity radius 700-1980 mm
Column effective travel 1850 mm
Rotation angle 160 degrees
Power Supply 380V 3PH Palletizer: 6kw Conveyor: 1.5kw
